AC220V 32A 7.2KW Home Ev Charger Outdoor Ultra Lightweight 5.4KG

Name: AC220V 32A 7.2KW Home Ev Charger Outdoor Ultra Lightweight 5.4KG
Brand: TIANJIN TOEC HUADIAN TECHNOLOGY CO., LTD
SKU: HD-OB207
Rating: 4.6 (158 reviews)

Product Details

Brand Name: TIANJIN TOEC HUADIAN TECHNOLOGY CO., LTD

Model Number: HD-OB207

Document: Product Brochure PDF

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                7.2KW Home Ev Charger Outdoor, 32A Home Ev Charger Outdoor


Plug Model:	Separate Wiring Without Plug	Product Type:	Swipe Card Activation
Installation:	Pillar/wall Mounted	Equipment Weight:	About 3.7KG
Input Voltage:	AC230V	Input Frequency:	50Hz/60Hz

Plug Model:	Separate Wiring Without Plug
Product Type:	Swipe Card Activation
Installation:	Pillar/wall Mounted
Equipment Weight:	About 3.7KG
Input Voltage:	AC230V
Input Frequency:	50Hz/60Hz

AC220V 32A 7.2KW Home Ev Charger Outdoor Ultra Lightweight 5.4KG

We usually export large quantities to foreign countries. Hope to find more trade partners.

Ultra-Lightweight 5.4KG Portable Outdoor Power Station for AC220V 32A 7.2KW Charging

Product Description

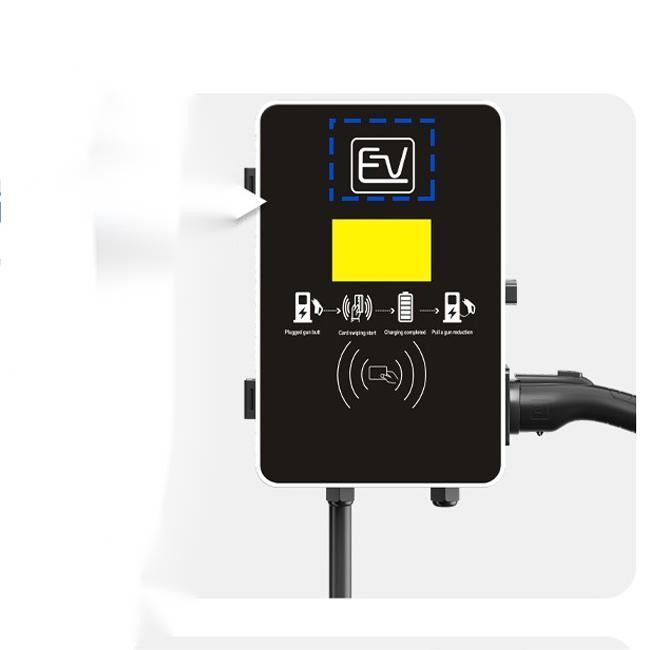

1. Household wall mounted AC charging station, which can be installed with columns

2. Three color charging indicator light, indicating charging related values

3. Optional gold and silver glass panels, supporting customized panels

Describe

The HD-OB208 charging gun is a portable charging product that complies with the European Union's AC power consumption standards, with a rated maximum AC output power of 22KW and a weight of approximately 5.4KG. It is suitable for wall mounted household new energy charging stations and is convenient and fast.

General specifications

Detailed parameters			Parameter Details
Name and model			HD-OB208
Appearance structure		plug model	Separate wiring without plug
		product type	Swipe card activation
		Shell material	Gun Head - Control Box PC9330
		Equipment size	Gun head 230 * 98 * 70mm/control box 280 * 220 * 93mm [H * W * D]
		Installation method	Pillar/wall mounted
		Install components	Wall mounted screw accessories [can be installed with columns]
		Wiring method	Up in and down out
		Equipment weight	About 5.4KG
		Cable specifications	5*6mm² +0.75mm²
		Cable length	5 meters [supports customized line length]
Electrical indicators		input voltage	AC380V
		Input frequency	50Hz/60Hz
		maximum power	22KW
		output voltage	AC380V
		Output current	32A
		standby power	3W
Environmental indicators		usage scenarios	Indoor/Outdoor
		Working humidity	5% -95% non condensing
		working temperature	-30℃～+50℃
		Working altitude	<2000 meters
		Protection level	Gun head IP67/control box IP67
		Cooling method	Natural cooling
		Safety regulations and standards	SAEJ1772
		Flame retardant grade	UL94 V0
		Product Certification	TUV,CE,CB
Functional design		man-machine interface	LED indicator light
Functional design		communication interface	/
Packaging specifications		Box gauge/weight	505505298mm
safety design	Undervoltage protection, overvoltage protection, overload protection, overcurrent protection, over temperature protection, leakage protection, grounding protection, lightning protection, electrostatic protection, flame retardant protectionretardant protection

Application

Suitable for American standard new energy vehicle home emergency electricity, outdoor travel, emergency relief, outdoor work and other occasions, charging anytime and anywhere.

IP67 protection level integrated stamping

Always ensure the safety of vehicle charging

AC220V 32A 7.2KW Home Ev Charger Outdoor Ultra Lightweight 5.4KG 0
