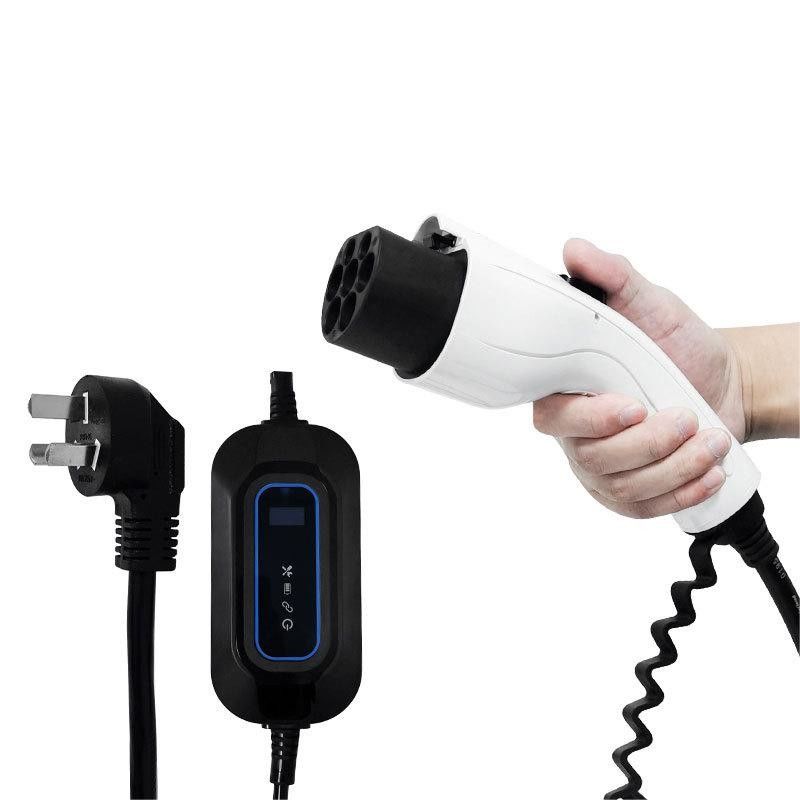

Portable Household Electric Home Charger 7KW Max 32A Plug

Name: Portable Household Electric Home Charger 7KW Max 32A Plug
Brand: TIANJIN TOEC HUADIAN TECHNOLOGY CO., LTD
SKU: HD-OB105
Rating: 4.5 (141 reviews)

Product Details

Brand Name: TIANJIN TOEC HUADIAN TECHNOLOGY CO., LTD

Model Number: HD-OB105

Document: Product Brochure PDF

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                Electric Home Charger 7KW, Electric Home Charger 32A Plug, electric home charging point 7KW


Equipment Weight:	About 3.4KG	Input Voltage:	AC230V
Input Frequency:	50Hz/60Hz	Maximum Power:	7KW
Standby Power:	3W	Working Temperature:	-30℃～+50℃

Equipment Weight:	About 3.4KG
Input Voltage:	AC230V
Input Frequency:	50Hz/60Hz
Maximum Power:	7KW
Standby Power:	3W
Working Temperature:	-30℃～+50℃

Portable Household Electric Home Charger 7KW Max 32A Plug

We usually export large quantities to foreign countries. Hope to find more trade partners.

Portable Household Outdoor Power Station, HD-OB105, 7KW Max, 3W Standby, 32A Plug

Product Description

1. Portable household portable charger

2. After charging and use, it can be carried with the vehicle

3. When the device is in standby mode, the power is as low as 3W, saving energy and low consumption

4. Three color charging indicator light, indicating charging related values

5. Numerical screen display, displaying real-time charging data of the charging gun

Describe

The HD-OB105 charging gun is a portable charging product that meets the European Union's AC power consumption standards, with a rated AC output of maximum power of 7KW and a weight of approximately 3.4KG. It is suitable for household new energy on-board chargers, outdoor travel, emergency relief, outdoor work, and other occasions.

General specifications

Detailed parameters			Parameter Details
Name and model			HD-OB105
Appearance structure		plug model	32A industrial plug
		product type	Plug and Charge
		Shell material	Gun Head - Control Box PC9330
		Equipment size	Gun head 230 * 98 * 70mm/control box 220 * 98 * 62mm [H * W * D]
		Installation method	Floor/wall mounted
		Install components	Wall mounted screw accessories
		Wiring method	Up in and down out
		Equipment weight	About 3.4KG
		Cable specifications	3*6mm² +0.75mm²
		Cable length	5 meters [supports customized line length]
Electrical indicators		input voltage	AC230V
		Input frequency	50Hz/60Hz
		maximum power	7KW
		output voltage	AC230V
		Output current	32A
		standby power	3W
Environmental indicators		usage scenarios	Indoor/Outdoor
		Working humidity	5% -95% non condensing
		working temperature	-30℃～+50℃
		Working altitude	<2000 meters
		Protection level	Gun head IP67/control box IP67
		Cooling method	Natural cooling
		Safety regulations and standards	SAEJ1772
		Flame retardant grade	UL94 V0
		Product Certification	TUV,CE,CB
Functional design		man-machine interface	LCD 1.3 inch display screen
Functional design		communication interface	/
Packaging specifications		Box gauge/weight	505505298mm
safety design	Undervoltage protection, overvoltage protection, overload protection, overcurrent protection, over temperature protection, leakage protection, grounding protection, lightning protection, electrostatic protection, flame retardant protectionretardant protection

Application

Suitable for charging new energy vehicles anytime and anywhere for emergency electricity use in households, outdoor travel, emergency relief, outdoor work, and other occasions.

Adjustable current

It has 4 current modes, with adjustable fast and slow charging, suitable for various current demand models, and good compatibility.
