Highlight:
3W Standby Home EV Charging Station
, Home EV Charging Station Plug
, Portable Ev Charger Plug
3W Standby Home EV Charging Station Portable Ev Charger Plug and Charge
We usually export large quantities to foreign countries. Hope to find more trade partners.
Portable Power Station HD-OB106, 16A EU Plug, 3.5KW, <3W Standby, 3A Max DC Output.
Product Description
1. Portable household portable charger
2. After charging and use, it can be carried with the vehicle
3. When the device is in standby mode, the power is as low as 3W, saving energy and low consumption
4. Three color charging indicator light, indicating charging related values
5. Numerical screen display, displaying real-time charging data of the charging gun
Describe

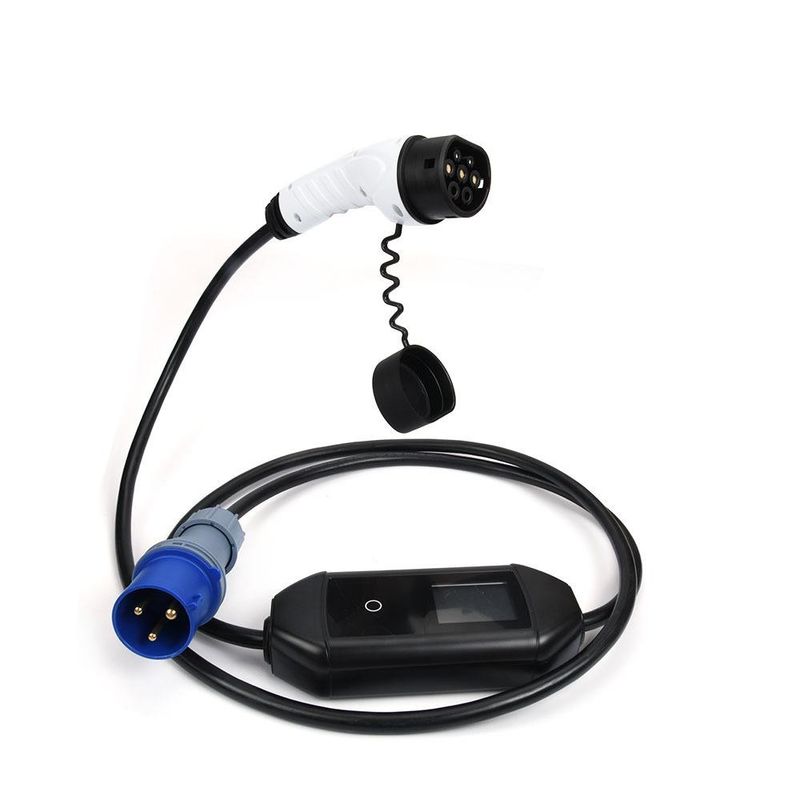

The HD-OB106 charging gun is a portable charging product that complies with the European Union's AC power consumption standards, with a rated maximum AC output power of 3.5KW and a weight of approximately 2KG. It is suitable for household new energy on-board chargers, outdoor travel, emergency relief, outdoor work, and other occasions.
General specifications
| Detailed parameters |
Parameter Details |
| Name and model |
HD-OB106 |
|
Appearance structure
|
plug model |
16A European standard plug |
| product type |
Plug and Charge |
| Shell material |
Gun Head - Control Box PC9330 |
|
Equipment size
|
Gun head 230 * 98 * 70mm/control box 220 * 98 * 62mm [H * W * D] |
| Installation method |
Floor/wall mounted |
| Install components |
Wall mounted screw accessories |
| Wiring method |
Up in and down out |
| Equipment weight |
About 2KG |
| Cable specifications |
3*2.5mm² +0.75mm² |
| Cable length |
5 meters [supports customized line length] |
|
Electrical indicators
|
input voltage |
AC230V |
| Input frequency |
50Hz/60Hz |
| maximum power |
3.5KW |
| output voltage |
AC230V |
| Output current |
16A |
| standby power |
3W |
|
Environmental indicators
|
usage scenarios |
Indoor/Outdoor |
| Working humidity |
5% -95% non condensing |
| working temperature |
-30℃～+50℃ |
| Working altitude |
<2000 meters |
| Protection level |
Gun head IP67/control box IP67 |
| Cooling method |
Natural cooling |
| Safety regulations and standards |
SAEJ1772 |
| Flame retardant grade |
UL94 V0 |
| Product Certification |
TUV,CE,CB |
|
Functional design
|
man-machine interface |
LCD 1.3 inch display screen/LED indicator light |
| communication interface |
/ |
| Packaging specifications |
Box gauge/weight |
505*505*298mm |
|
safety design
|
Undervoltage protection, overvoltage protection, overload protection, overcurrent protection, over temperature protection, leakage protection, grounding protection, lightning protection, electrostatic protection, flame retardant protectionretardant protection |
Application
Suitable for American standard new energy vehicle home emergency electricity, outdoor travel, emergency relief, outdoor work and other occasions, charging anytime and anywhere.
Complies with 62196-2 IEC 2010 SHEET 2-IE standard
Beautiful appearance, handheld design that conforms to ergonomic principles, convenient insertion and removal, flame retardant, environmentally friendly, wear-resistant, weather resistant, impact resistant, high oil resistant, and UV resistant materials.
