Highlight:
Home EV Charging Station 6.2KG
, Outdoor Home EV Charging Station
, 6.2KG home electric car charging point
Plug Model: |
Separate Wiring Without Plug |
Product Type: |
Swipe Card Activation |
Shell Material: |
Gun Head - Control Box PC9330 |
Equipment Size: |
Gun Head 230 * 98 * 70mm/control Box 268 * 228 * 100mm [H * W * D] |
Installation Method: |
Pillar/wall Mounted |
Install Components: |
Wall Mounted Screw Accessories [can Be Installed With Columns] |

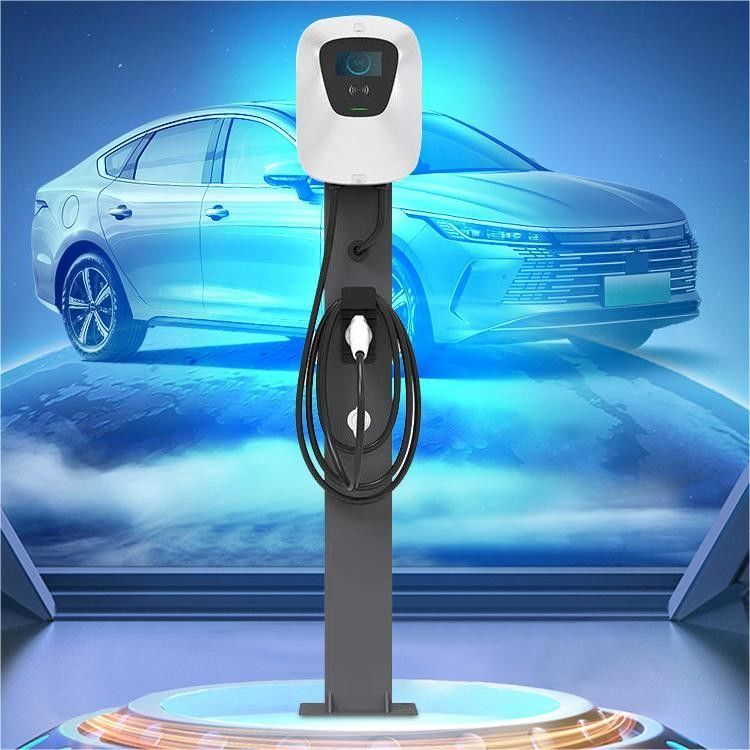

Outdoor Home EV Charging Station 6.2KG Wall Mounted Column Mounted
We usually export large quantities to foreign countries. Hope to find more trade partners.
Portable Outdoor Power Station: Wall Mounted & Column Mounted, 22KW, 6.2KG
Product Description
1. Wall mounted and column mounted charging stations
2. Charging, charging, security and anti-theft measures
3. When the device is in standby mode, the power is as low as 3W, saving energy and low consumption
4. Three color charging indicator light, indicating charging related values
5. Numerical screen display, displaying real-time charging data related to the charging station
6. Optional gold and silver glass panels, supporting customized panels
Describe
The HD-OB206 charging gun is a portable charging product that complies with the European Union's AC power consumption standards, with a rated maximum AC output power of 22KW and a weight of approximately 6.2KG. It is suitable for wall mounted household new energy charging stations and is convenient and fast.
General specifications
| Detailed parameters |
Parameter Details |
| Name and model |
HD-OB206 |
|
Appearance structure
|
plug model |
Separate wiring without plug |
| product type |
Swipe card activation
|
| Shell material |
Gun Head - Control Box PC9330 |
|
Equipment size
|
Gun head 230 * 98 * 70mm/control box 268 * 228 * 100mm [H * W * D] |
| Installation method |
Pillar/wall mounted |
| Install components |
Wall mounted screw accessories [can be installed with columns] |
| Wiring method |
Up in and down out |
| Equipment weight |
About 6.2KG |
| Cable specifications |
5*6mm² +0.75mm² |
| Cable length |
5 meters [supports customized line length] |
|
Electrical indicators
|
input voltage |
AC380V |
| Input frequency |
50Hz/60Hz |
| maximum power |
22KW |
| output voltage |
AC380V |
| Output current |
32A |
| standby power |
3W |
|
Environmental indicators
|
usage scenarios |
Indoor/Outdoor |
| Working humidity |
5% -95% non condensing |
| working temperature |
-30℃～+50℃ |
| Working altitude |
<2000 meters |
| Protection level |
Gun head IP67/control box IP67 |
| Cooling method |
Natural cooling |
| Safety regulations and standards |
SAEJ1772 |
| Flame retardant grade |
UL94 V0 |
| Product Certification |
TUV,CE,CB |
|
Functional design
|
man-machine interface |
LCD 1.3 inch display screen/LED indicator light |
| communication interface |
/ |
| Packaging specifications |
Box gauge/weight |
505*505*298mm |
|
safety design
|
Undervoltage protection, overvoltage protection, overload protection, overcurrent protection, over temperature protection, leakage protection, grounding protection, lightning protection, electrostatic protection, flame retardant protectionretardant protection |
Application
Suitable for charging new energy vehicles anytime and anywhere for emergency electricity use in households, outdoor travel, emergency relief, outdoor work, and other occasions.
More powerful intelligent chips protect the battery from damaging the car, ensuring safe charging for every time
EV overcharge protection
Battery overcharge protection
BMS data anomaly diagnosis
Vehicle battery
Voltage anomaly detection
Leakage detection
