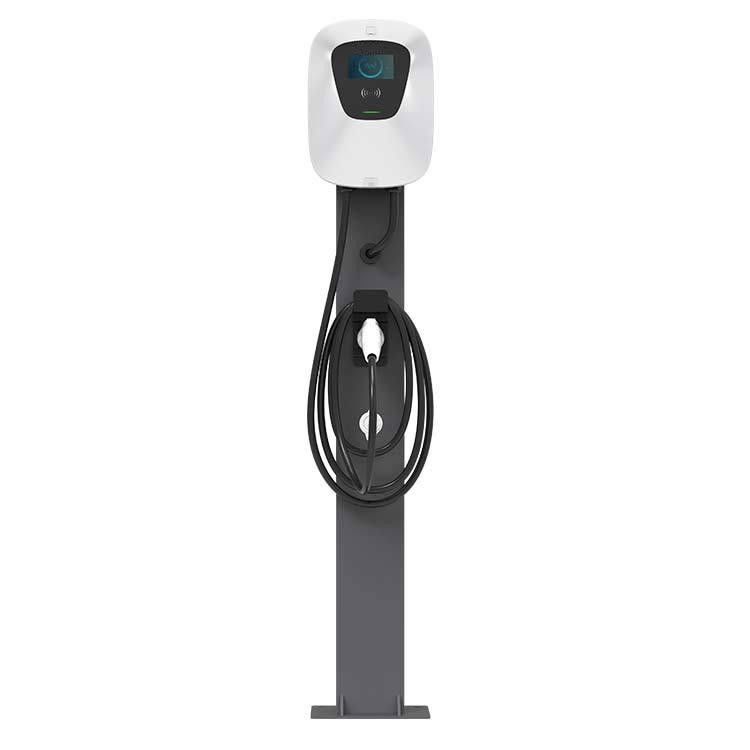

22KW Home Ev Charging Point Swipe Card Activation 5 Meters Cable Length

Name: 22KW Home Ev Charging Point Swipe Card Activation 5 Meters Cable Length
Brand: TIANJIN TOEC HUADIAN TECHNOLOGY CO., LTD
SKU: HD-OB206
Rating: 4.9 (119 reviews)

Product Details

Brand Name: TIANJIN TOEC HUADIAN TECHNOLOGY CO., LTD

Model Number: HD-OB206

Document: Product Brochure PDF

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                Home Ev Charging Point Swipe Card, 22KW Home Ev Charging Point


Installation Method:	Pillar/wall Mounted	Install Components:	Wall Mounted Screw Accessories [can Be Installed With Columns]
Wiring Method:	Up In And Down Out	Equipment Weight:	About 6.2KG
Cable Specifications:	5*6mm² +0.75mm²	Cable Length:	5 Meters [supports Customized Line Length]

Installation Method:	Pillar/wall Mounted
Install Components:	Wall Mounted Screw Accessories [can Be Installed With Columns]
Wiring Method:	Up In And Down Out
Equipment Weight:	About 6.2KG
Cable Specifications:	5*6mm² +0.75mm²
Cable Length:	5 Meters [supports Customized Line Length]

22KW Home Ev Charging Point Swipe Card Activation 5 Meters Cable Length

We usually export large quantities to foreign countries. Hope to find more trade partners.

Portable Outdoor Power Station: 22KW, Wall/Column Mounted, Swipe Card Activation

Product Description

1. Wall mounted and column mounted charging stations

2. Charging, charging, security and anti-theft measures

3. When the device is in standby mode, the power is as low as 3W, saving energy and low consumption

4. Three color charging indicator light, indicating charging related values

5. Numerical screen display, displaying real-time charging data related to the charging station

6. Optional gold and silver glass panels, supporting customized panels

Describe

The HD-OB206 charging gun is a portable charging product that complies with the European Union's AC power consumption standards, with a rated maximum AC output power of 22KW and a weight of approximately 6.2KG. It is suitable for wall mounted household new energy charging stations and is convenient and fast.

General specifications

Detailed parameters			Parameter Details
Name and model			HD-OB206
Appearance structure		plug model	Separate wiring without plug
		product type	Swipe card activation
		Shell material	Gun Head - Control Box PC9330
		Equipment size	Gun head 230 * 98 * 70mm/control box 268 * 228 * 100mm [H * W * D]
		Installation method	Pillar/wall mounted
		Install components	Wall mounted screw accessories [can be installed with columns]
		Wiring method	Up in and down out
		Equipment weight	About 6.2KG
		Cable specifications	5*6mm² +0.75mm²
		Cable length	5 meters [supports customized line length]
Electrical indicators		input voltage	AC380V
		Input frequency	50Hz/60Hz
		maximum power	22KW
		output voltage	AC380V
		Output current	32A
		standby power	3W
Environmental indicators		usage scenarios	Indoor/Outdoor
		Working humidity	5% -95% non condensing
		working temperature	-30℃～+50℃
		Working altitude	<2000 meters
		Protection level	Gun head IP67/control box IP67
		Cooling method	Natural cooling
		Safety regulations and standards	SAEJ1772
		Flame retardant grade	UL94 V0
		Product Certification	TUV,CE,CB
Functional design		man-machine interface	LCD 1.3 inch display screen/LED indicator light
Functional design		communication interface	/
Packaging specifications		Box gauge/weight	505505298mm
safety design	Undervoltage protection, overvoltage protection, overload protection, overcurrent protection, over temperature protection, leakage protection, grounding protection, lightning protection, electrostatic protection, flame retardant protectionretardant protection

Application

Suitable for new energy vehicle home emergency electricity, outdoor travel, emergency relief, outdoor work and other occasions, charging anytime and anywhere.

The waterproof level has been raised from the industry standard requirement of IP54 to IP55, which is waterproof/dustproof and can be used outdoors with peace of mind.
